Diffuser

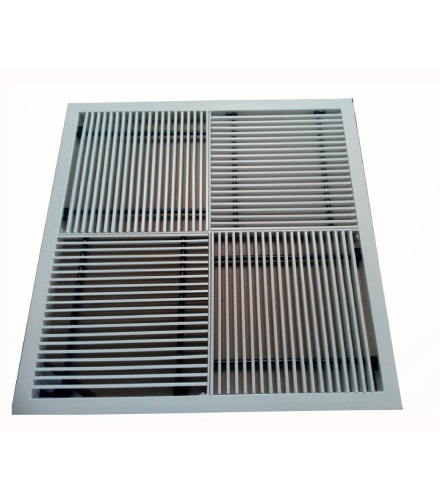

Square Swirl Diffuser is mainly used for air supply for air conditioning and ventilators it is also known as Multi Direction Outlet. For its special multi direction design, it can provide multi-angle airflow, which can create a more comfortable environment. It also enables a quick and easy reconfiguration of air discharge pattern by repositioning of the individual cores.

FEATURES

• Extruded aluminium construction.
• Four way uniform Air Distribution
• Balance between aesthetic appearance and performance.
• Removable air pattern modules can be removed for access to optional VCD

MODELS

• AP-ASD Without Oppose Blade Damper
• AP-ASD-D With Oppose Blade Damper

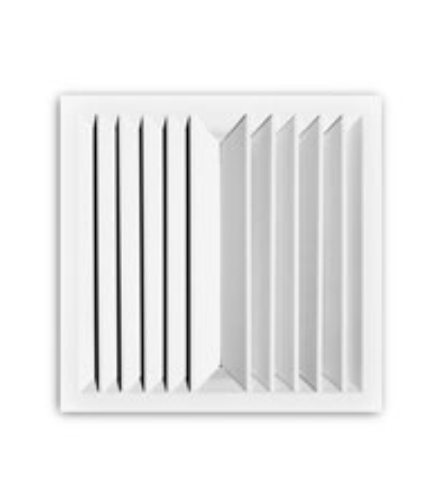

Air supply or Two Way Linear Grilles return in-conditioning, ventilating and heating systems.

FEATURES

• Extruded Aluminium Construction
• Two way uniform Air Distribution
• For ceiling application

MODELS

• AP-TMCD Without Oppose Blade Damper
• AP-TMCD-D With Oppose Blade Damper

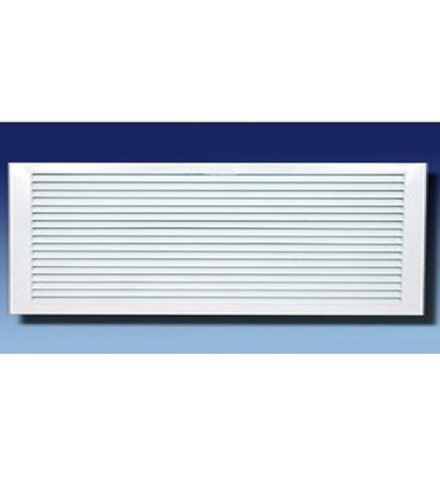

Aluminium Linear Diffuser, are suitable for draft free supply air from ceiling. Available in one way or two way discharge pattern

FEATURES

• Extruded Aluminium construction.
• 45° Discharge parallel to ceiling
• Optional Collar Damper

MODELS

• AP-LD-OW For One way
• AP-LD-TW For Two Way

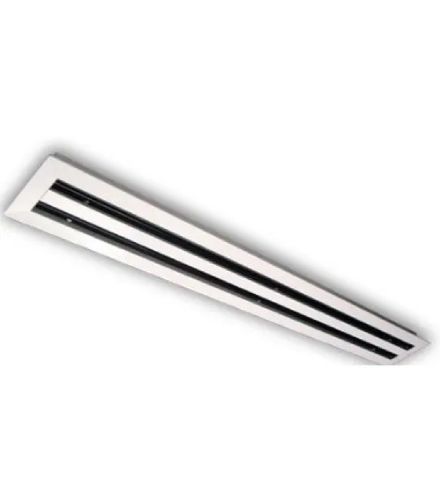

These are available from 1 to 8 slot in 12.5 mm(0.5 inch), 19 mm (0.75 inch) and 25 mm (1 inch) slot width. Air flow can be adjusted with help of air pattern controller. Air quantity and be regulated by adjusting collar damper through the slot.

FEATURES

• Extruded Aluminium Construction
• Inbuilt Air Pattern Controller
• Easy Operation of Collar Damper through the Slot

MODELS

• AP-SDG-SH/SV SH for Front Louver Horizontal & SV for Front Louver Vertical
• AP-SDG-SH/SV-SAG SH for Front Louver Horizontal & SV for Front Louver Vertical with Damper

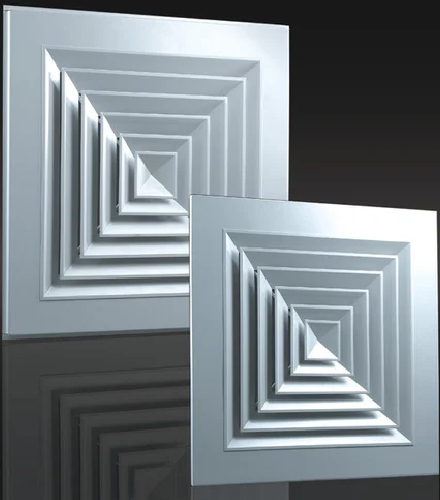

These are used for Modular Ceiling in Armstrong type tile ceiling, which is fast substituting conventional Gypsum ceiling. These Diffusers enables to match tile size irrespective of collar size of the diffusers. These diffusers are designed to blend with tile used for ceiling and are available in two standard patterns, Flush(Lay-In)/ and Tegular.

FEATURES

• Extruded Aluminium or One Piece Joint less Inner Core
• Standard Dimension 595x595 mm to match the modular ceiling frame work
• Flush or Tegular patterns to match ceiling tile design

TECHNICAL SPECIFICATIONS

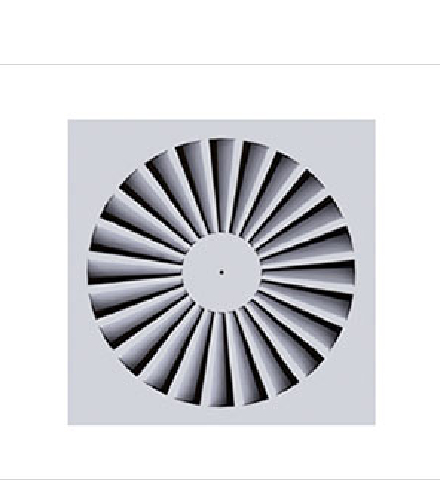

Radial Vane Swrill Diffuser is a fixed air pattern swirl diffuser giving a horizontal discharge with a set of pre-formed close pitch vanes and being available in either a square or circular ceiling panel format. An additional anti smudge diffuser ring may be fitted to minimise the collection of dust particles on the diffuser face. Typical applications include all general offices and reception areas.

FEATURES

• Swirl Diffusers are designed to create a rotary swirling motion to the supply air discharge.
• It rapidly induces the room air to quickly decrease the velocity and temperature difference of the supply air.

MODELS

• AP-ALSWD

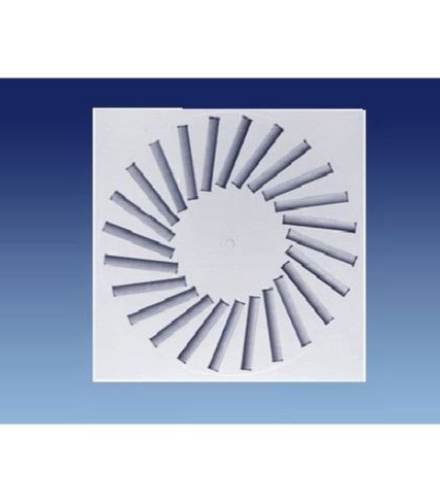

The salient feature is to creates high induction ratio and a rapid consolidation of supply air and room temperature as a result of helical air stream discharge. This diffuser is capable of handling high air discharge without draft. This diffusers are supplied with acute angled deflectors which are adjusted for desired air flow.

FEATURES

• Made of Aluminium sheet / G.I. sheet steel
• Designed for T Bar Modular ceiling application
• Designed for T Bar Modular ceiling application
• Available in 12/24/32/48 slots
• Inbuilt Butterfly Damper with plenum Box is optional for supply air

MODELS

• AP-HSD 12/24/32/48 For 12 Slot/24 Slot/32 Slot / 48 Slot
• AP-HSD 12/24/32/48-PL For 12 Slot/24 Slot / 32 Slot / 48 Slot with Plenum Box for Supply Air

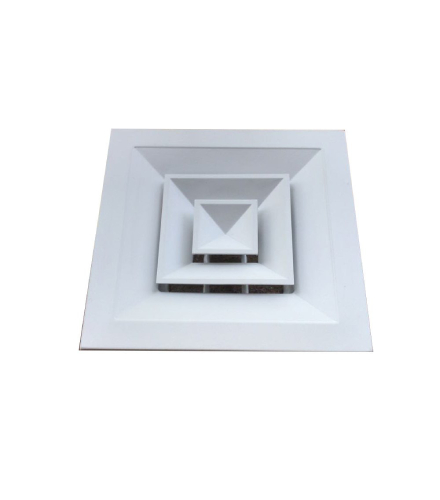

Square/Rectangular Ceiling Diffuser, gives a draft free air distribution. Four way Square /Rectangular distribution allows equal supply in all four direction, while three, two or one way diffusers permits the supply in desired direction. Removable centre core arrangement enables conceal fixing without visible mounting screws and also easy excess to the volume control damper for balancing the air conditioning system.

FEATURES

• Extruded Aluminium or One Piece Joint less Aluminium Sheet Construction
• Available with attached Damper in case of Supply air Diffuser
• 1, 2, 3 and 4 way combination for desired air direction
• Optional with oppose blade damper

MODELS

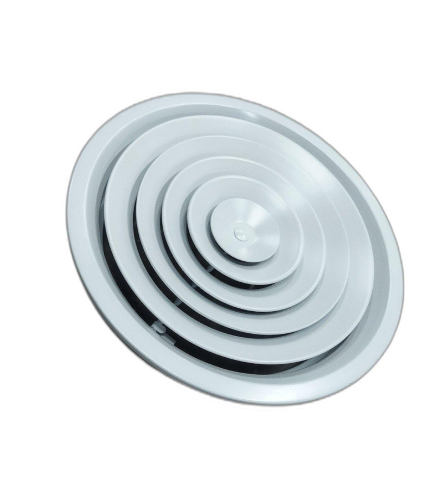

Round Ceiling Diffuser provides an alternative option to square or rectangular diffuser, to Provide draft free supply air. Made out of aluminium sheet, removable core construction improves aesthetic by eliminating visible mounting screws.

FEATURES

• Aluminium Sheet Construction
• Removable Inner core
• Butterfly Type Damper for Supply Air

MODELS

• AP-ARD Without Butterfly Damper
• AP-ARD-D With Butterfly Damper

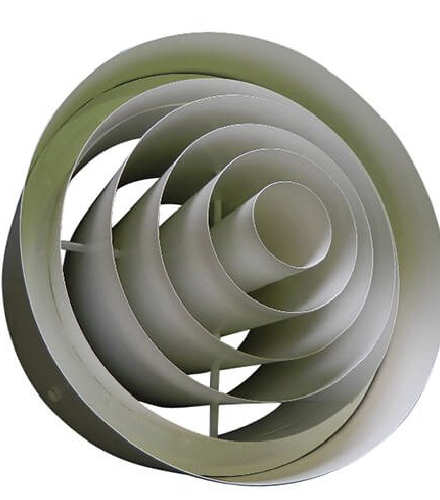

Aluminium Jet Diffusers are used for Very high ceilings and large supply air quantities or side-wall installation with long throws and quite performance. Commonly used in Airport Teminals, Television Studios, Indoor Sports stadiums and High Building Atriums.

FEATURES

• Aluminium Construction
• Optional with or without Volume Control Damper

MODELS

• AP-AJD Without Volume Control Damper
• AP-AJD-D With Volume Control Damper
